Grain Rings

Download Brochure (pdf 871 kb)View Video

When production outpaces expectation....

Meridian Grain Rings, the low cost alternative that can provide a temporary solution to your volume crisis.

  • Easy to set up, take down and re-use
  • Compactible... minimal space requried to store when not in use
  • Stackable
  • Add a tarp to the system for protection from wind, rain, and wildlife
  • No special equipment needed to fill (auger or grain vacuum)
  • Standard capacities from 2,315 to 93,700 bushels (63 to 2555 tonnes)
  • Wall heights in 2' (.6 metre) increments up to 4' (1.2 metres) maximum.
  • Diameters from 29' (8.8 metres) to 105' (32 metres)

Construction

  • Corrugated galvanised panels are rolled and crimped on a line. This deep corrugation in 22 gauge material will provide a strong, reusable system for temporary grain storage.
  • The Grain Ring package comes complete with tarp hooks and hardware which can be installed on the first available seam line down from the top at intermittent intervals to fasten tarp and rope to the ring.
  • Using an eyebolt installed periodically around the diameter in the ground level seam line, a 1/2” diameter anchor pin is driven into place. This system is intended to simply provide temporary security against wind when the ring is empty and untarped.
  • The supplied industrial gasket can simply be installed on the top edge of your ring for the entire diameter protecting your tarp from the sharp edges of the steel panels.

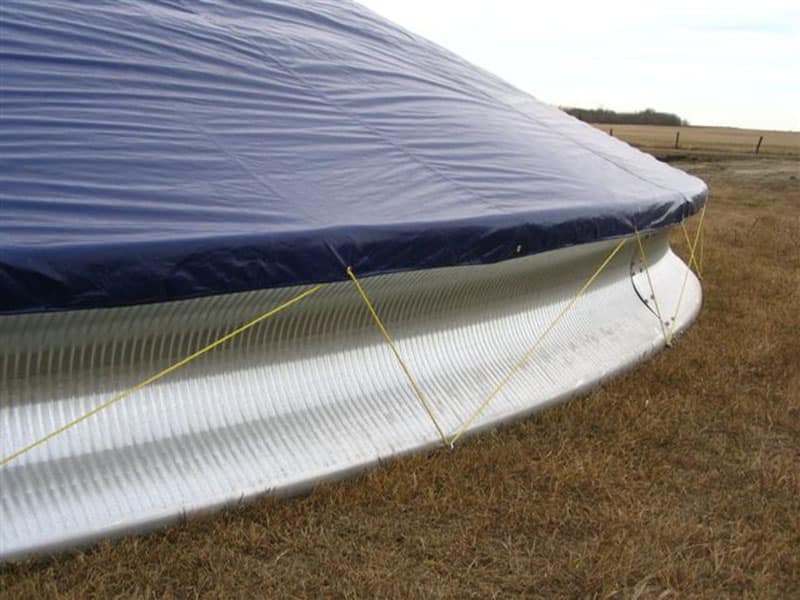

Grain Storage Ring with Tarp Fastening

Grain Storage Rings - Grain Deposit

Grain Storage Rings - Grain Deposit - Full
